In recent years, climate change has increasingly highlighted the importance of homes that guarantee not only security, but also thermal comfort and energy efficiency.

Extreme temperatures, humidity, wind, and heavy rain require high-performance entrances that can protect the home while also contributing to daily energy savings.

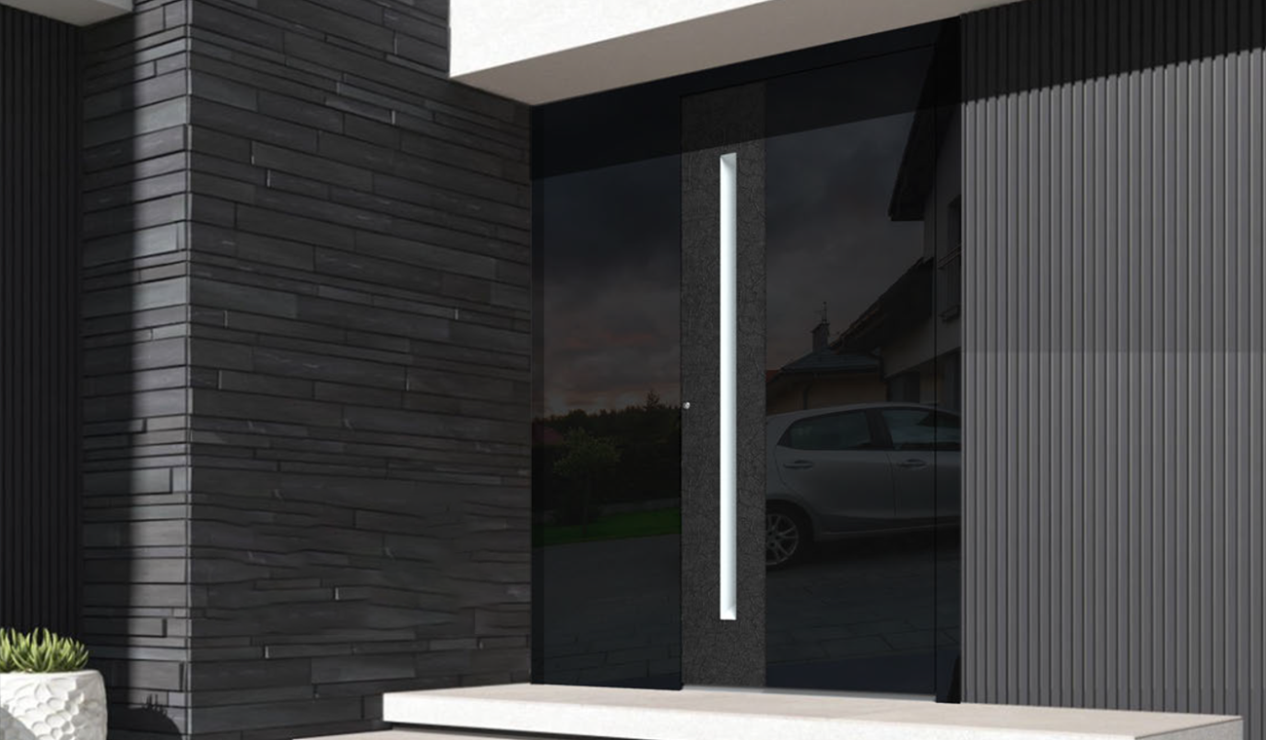

To meet these needs, Effepi Security Doors expands its offering with ThermAll, the new line of thermally insulated aluminum doors designed to combine security, design, and high energy performance in a single solution.

Download attachments

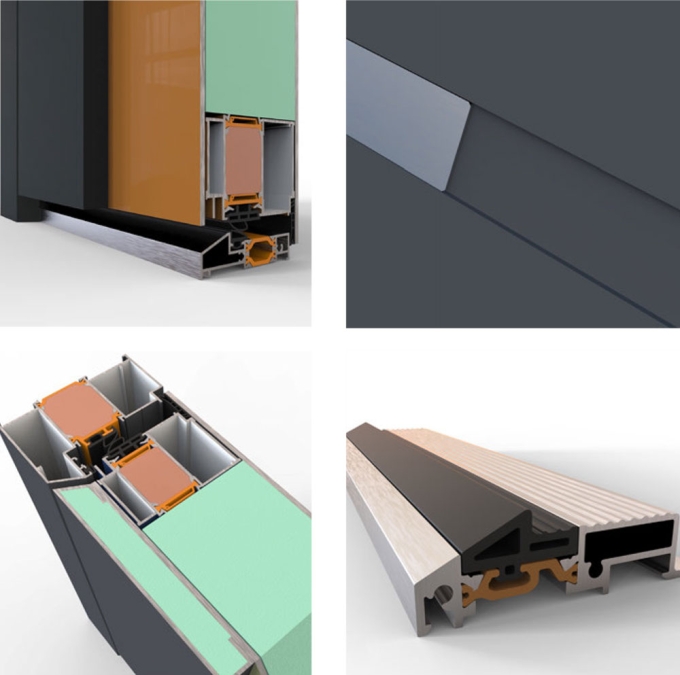

SUPERIOR 3D Series
A SERIES

SUPERIOR 3D Series

With aluminum panels applied on both sides. Aluminum panel thickness: 3 mm on the inside and 2 + 2 mm on the outside. Flush stainless steel inserts are available. Two colors are available for the inside and outside.

Total thickness: 95.5 mm

  • Ud = 0.81 W/m²K
  • External aluminum sheet: 2 + 2 mm
  • Internal aluminum sheet: 3 mm
  • BURGLAR-RESISTANCE CLASS: RC3
  • WATERPROOFNESS: E750 (750 Pa)
  • AIR PERMEABILITY: 2
  • WIND RESISTANCE: C5 / B5
  • MAXIMUM DIMENSIONS: ≤ 1200 x 2500
Product configuration
SUPERIOR 3D Series

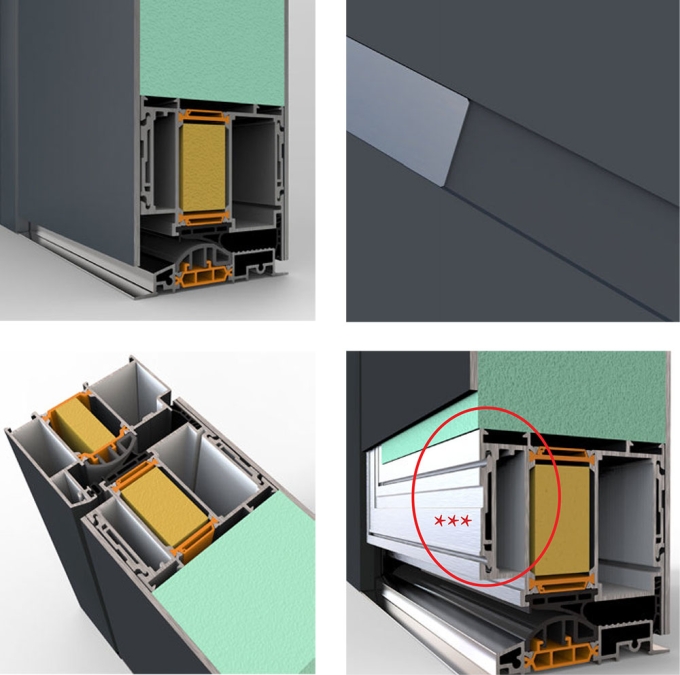

AVANTAGE_95 MAX Line
B SERIES

AVANTAGE_95 MAX Line

With aluminum panels applied on both sides. Aluminum panel thickness: 3 mm on the inside and outside. Flush stainless steel inserts may be available.

Total thickness: 95 mm

  • Ud = 0.74 W/m²K
  • External aluminum sheet: 3 mm
  • Internal aluminum sheet: 3 mm
  • BURGLAR-RESISTANCE CLASS: RC3
  • WATERPROOFNESS: 3A
  • AIR PERMEABILITY: 2
  • WIND RESISTANCE: C5 / B5
  • MAXIMUM DIMENSIONS: ≤ 1200 x 2700
Product configuration
AVANTAGE_95 MAX Line

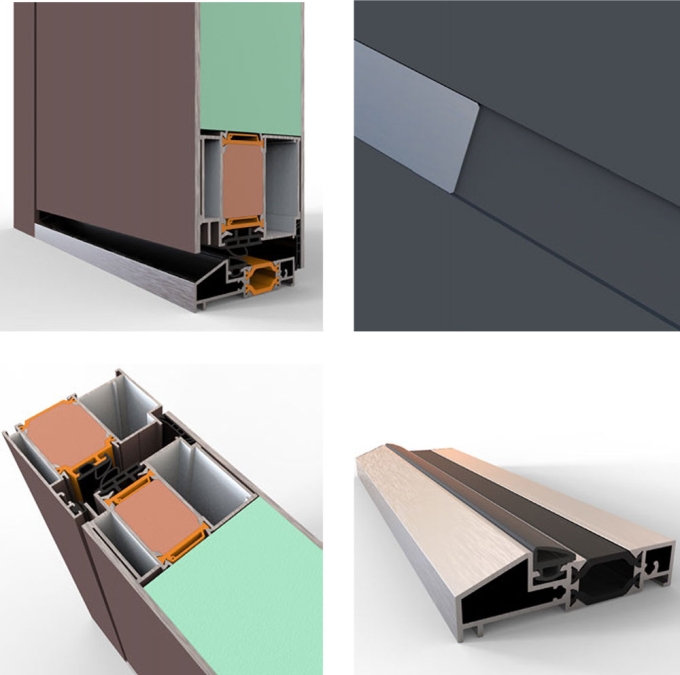

AVANTAGE_88 Line
C SERIES

AVANTAGE_88 Line

With aluminum panels applied on both sides. Aluminum panel thickness 3 mm on the inside and outside. Flush stainless steel inserts may be available. Two colors are available for the inside and outside.

Total thickness 77 mm

  • Ud = 0.92 W/m²K
  • External aluminum sheet: 3 mm
  • Internal aluminum sheet: 3 mm
  • BURGLAR-RESISTANCE CLASS: RC3
  • WATERPROOFNESS: E750 (750 Pa)
  • AIR PERMEABILITY: 2
  • WIND RESISTANCE: C5 / B5
  • MAXIMUM DIMENSIONS: ≤ 1200 x 2500
Product configuration
AVANTAGE_88 Line
C SERIES

AVANTAGE_88 Line

With aluminum panels applied on both sides. Aluminum panel thickness 3 mm on the inside and outside. Flush stainless steel inserts may be available. Two colors are available for the inside and outside.

Total thickness 77 mm

  • Ud = 0.92 W/m²K
  • External aluminum sheet: 3 mm
  • Internal aluminum sheet: 3 mm
  • BURGLAR-RESISTANCE CLASS: RC3
  • WATERPROOFNESS: E750 (750 Pa)
  • AIR PERMEABILITY: 2
  • WIND RESISTANCE: C5 / B5
  • MAXIMUM DIMENSIONS: ≤ 1200 x 2500
Product configuration
AVANTAGE_88 Line
C SERIES

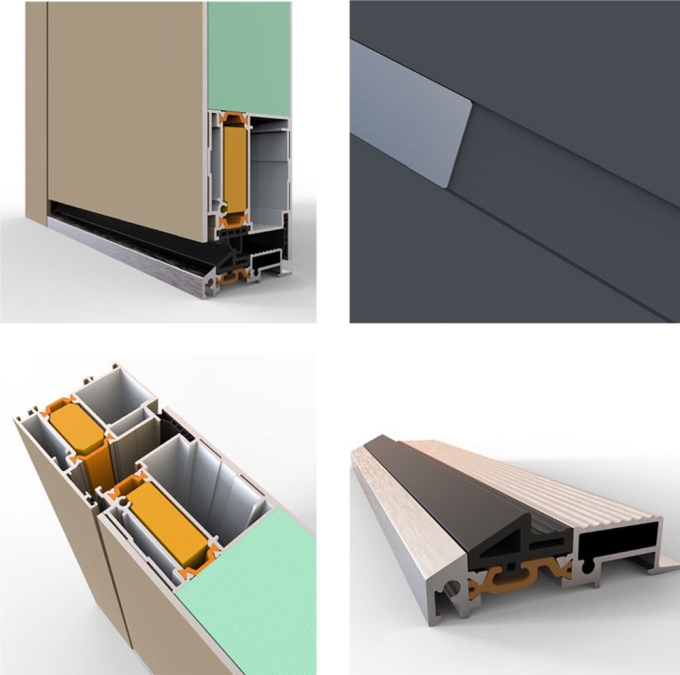

AVANTAGE_67 Line

With aluminum panels applied on both sides. Aluminum panel thickness: 3 mm on the outside and 2 mm on the inside. Flush stainless steel inserts may be available.

Total thickness: 67 mm

  • Ud = 0.96 W/m²K
  • External aluminum sheet: 3 mm
  • Internal aluminum sheet: 2 mm
  • BURGLAR-RESISTANCE CLASS: RC2
  • WATERPROOFNESS: E1350 (1350 Pa)
  • AIR PERMEABILITY: 2
  • WIND RESISTANCE: C4 / B4
  • MAXIMUM DIMENSIONS: ≤ 1150 x 2350
Product configuration
AVANTAGE_67 Line

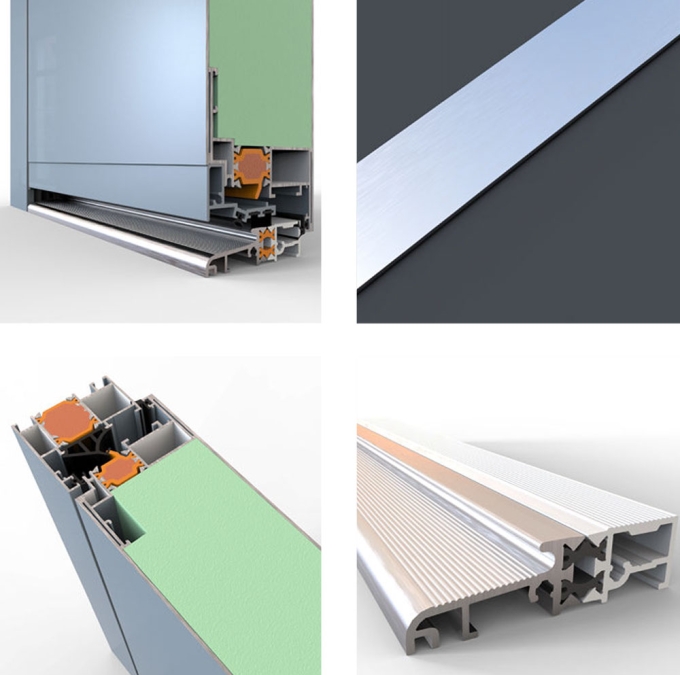

COMPACT LINE
E SERIES

COMPACT LINE

With aluminum panels applied on both sides. Aluminum panel thickness 1.5 mm on the inside and outside. Flush stainless steel inserts may be available.

Total thickness 69.1 mm

  • Ud = 0.96 W/m²K
  • External aluminum sheet: 1.5 mm
  • Internal aluminum sheet: 1.5 mm
  • BURGLAR-RESISTANCE CLASS: N/A
  • WATERPROOFNESS: 9A
  • AIR PERMEABILITY: 2
  • WIND RESISTANCE: C4 / B4
  • MAXIMUM DIMENSIONS: ≤ 1050 x 2250
Product configuration
COMPACT LINE
