C SERIES

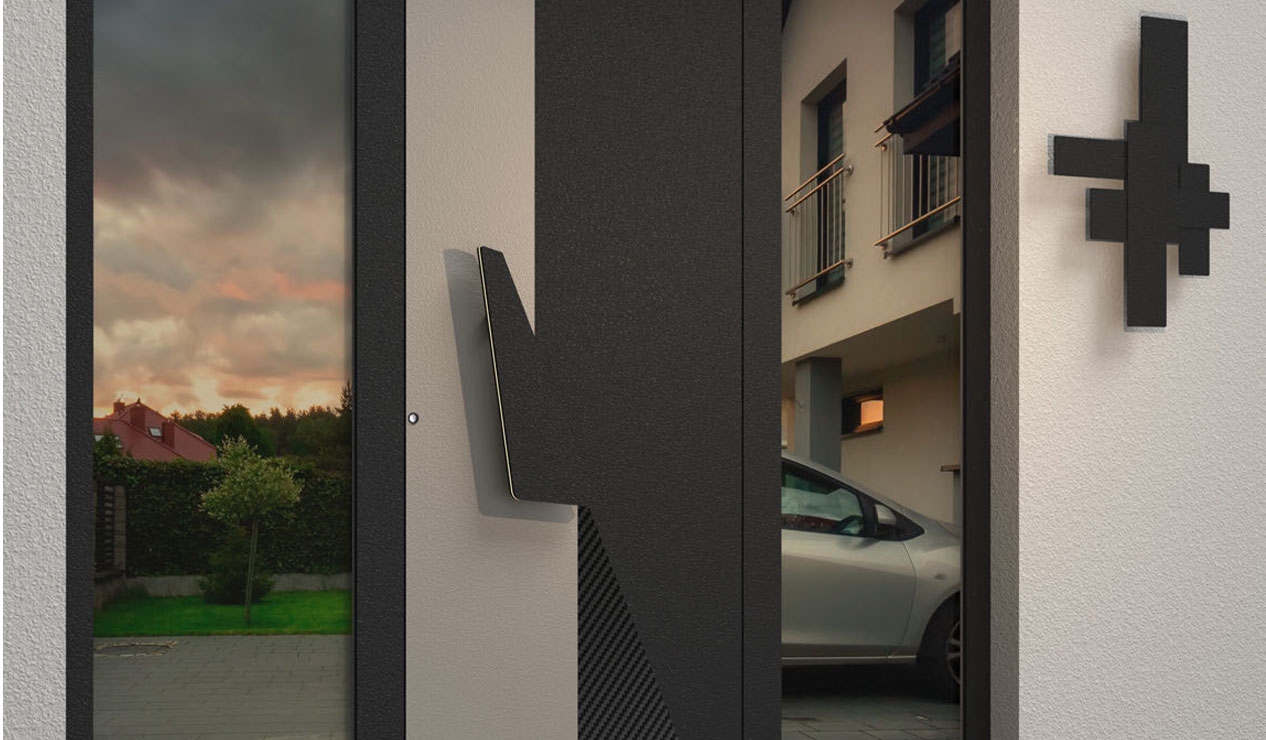

AVANTAGE_88 Line

With aluminum panels applied on both sides. Aluminum panel thickness 3 mm on the inside and outside. Flush stainless steel inserts may be available. Two colors are available for the inside and outside.

Total thickness 77 mm

Ud = 0.92 W/m²K
External aluminum sheet: 3 mm
Internal aluminum sheet: 3 mm
BURGLAR-RESISTANCE CLASS: RC3
WATERPROOFNESS: E750 (750 Pa)
AIR PERMEABILITY: 2
WIND RESISTANCE: C5 / B5
MAXIMUM DIMENSIONS: ≤ 1200 x 2500

product sheet

Product details AVANTAGE_88 Line

C SERIES

AVANTAGE_88 Line

Ud = 0.92 W/m²K
External aluminum sheet: 3 mm
Internal aluminum sheet: 3 mm
BURGLAR-RESISTANCE CLASS: RC3
WATERPROOFNESS: E750 (750 Pa)
AIR PERMEABILITY: 2
WIND RESISTANCE: C5 / B5
MAXIMUM DIMENSIONS: ≤ 1200 x 2500

product sheet

Product details AVANTAGE_88 Line

C SERIES

AVANTAGE_67 Line

With aluminum panels applied on both sides. Aluminum panel thickness: 3 mm on the outside and 2 mm on the inside. Flush stainless steel inserts may be available.

Total thickness: 67 mm

Ud = 0.96 W/m²K
External aluminum sheet: 3 mm
Internal aluminum sheet: 2 mm
BURGLAR-RESISTANCE CLASS: RC2
WATERPROOFNESS: E1350 (1350 Pa)
AIR PERMEABILITY: 2
WIND RESISTANCE: C4 / B4
MAXIMUM DIMENSIONS: ≤ 1150 x 2350

product sheet

Product details AVANTAGE_67 Line
